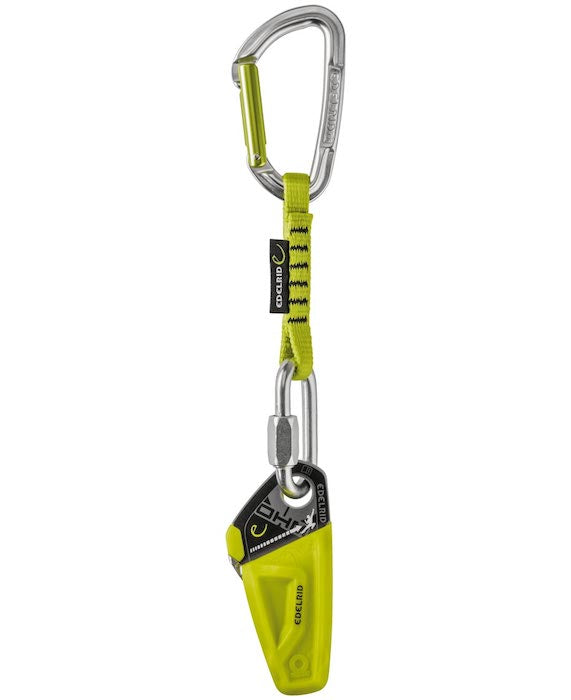

Edelrid Ohm Assisted Braking Resistor

Ohm Assisted Braking Resistor

$149.50 USD
$149.50 USD $149.50 USD
Sale Sold out
Size
Color

The Edelrid Ohm is an assisted-braking resistor to increase rope friction when there is a large weight difference between the belayer and the lead climber. In the event of a fall, the device increases the amount of rope friction so that a lighter belayer can hold a heavier lead climber without difficulty.

Specs

  • Belayer requires significantly less hand braking force to arrest a fall
  • Lowering a heavier climber is much easier to control
  • OHM is attached at the first bolt in the safety chain
  • Should a lead climber fall at the first bolt, the OHM significantly reduces the risk of a possible ground fall
  • Rope handling when belaying a lead climber not affected (no additional friction when paying out rope)
  • Recommended weight difference (lead climber > belayer): 10 - 40 kg
  • Minimum weight belayer is 40 kg
 Rope Diameter  8.9 - 11 mm
 Load Capacity  20 kN
 Weight  360 g

EDR-72070-1123486175
